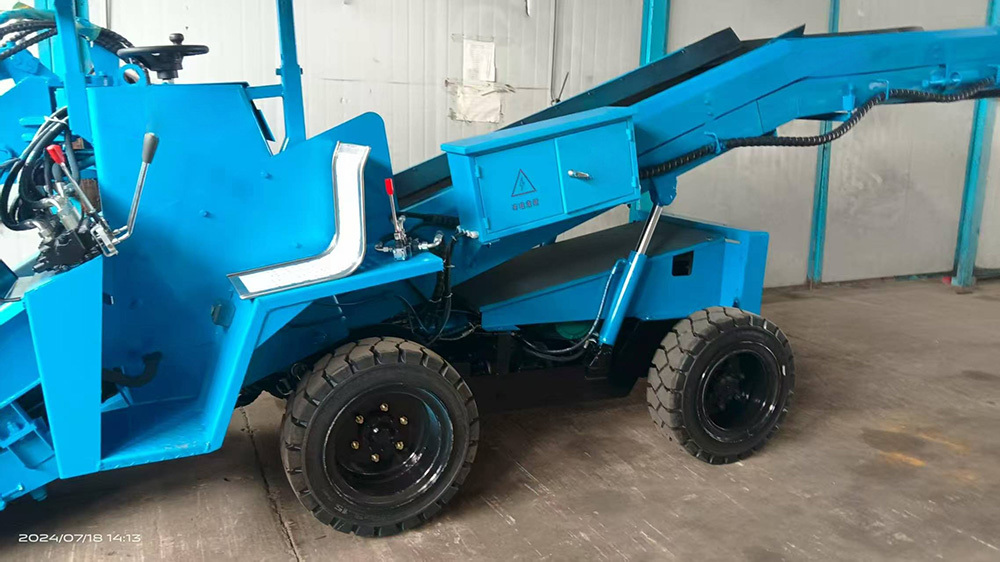

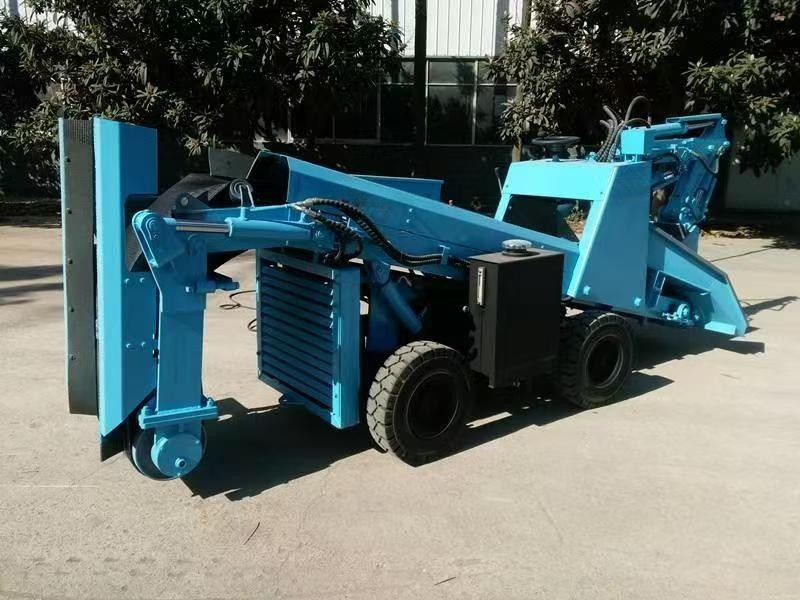

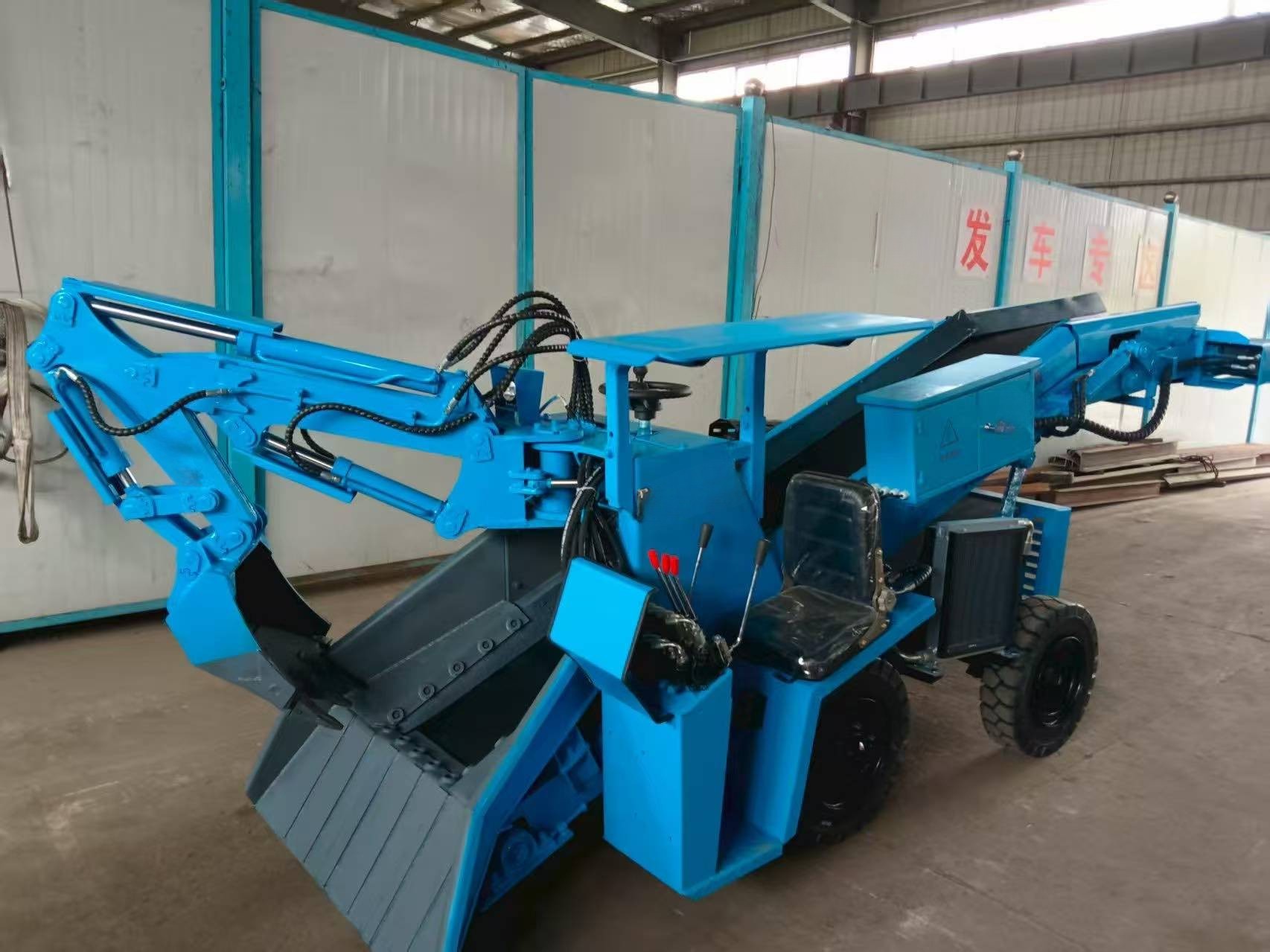

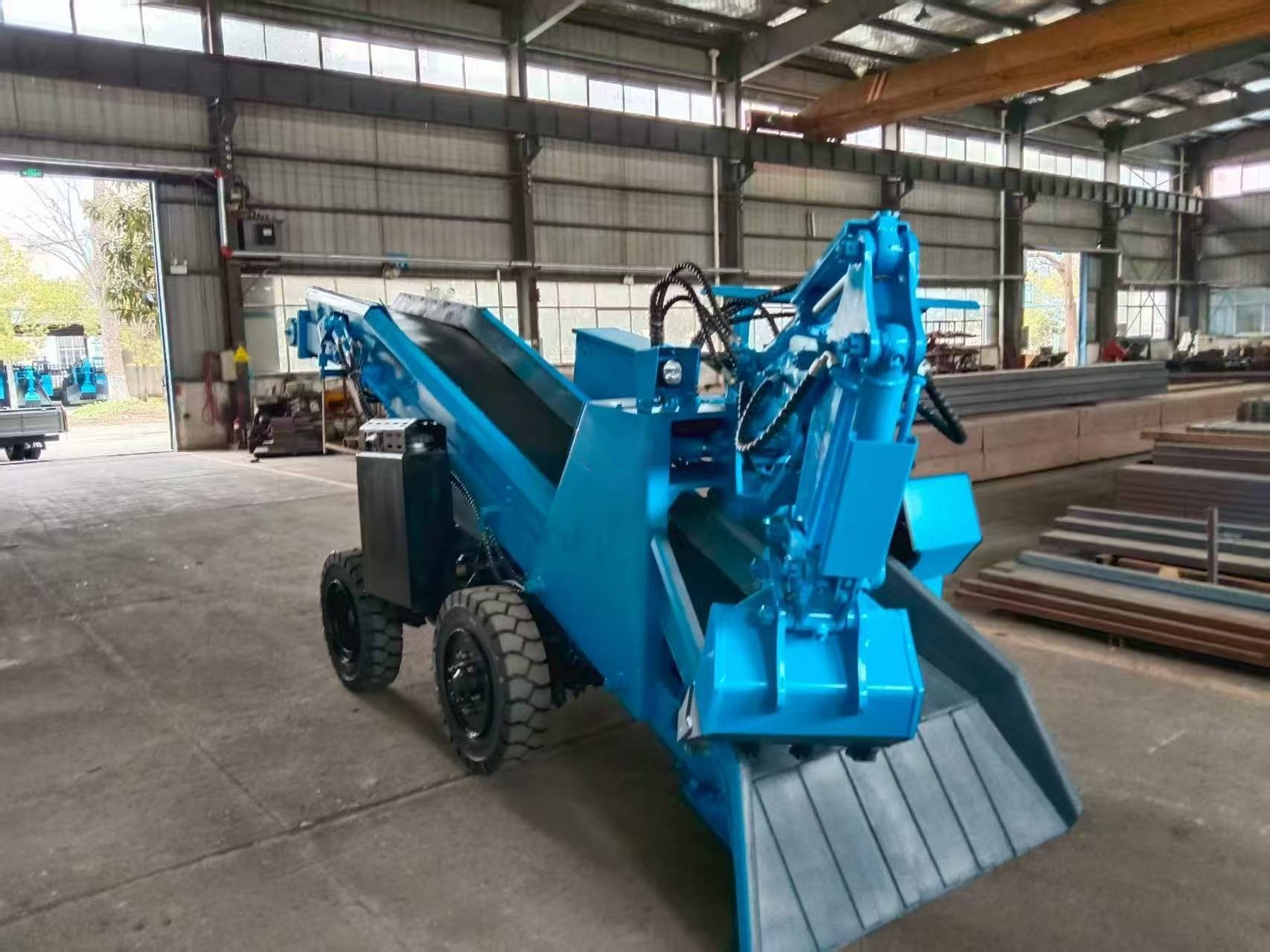

ZWY-4014L0 P Mucking Loader Specifications
Category:
Mucking loader
Detailed information
| Model | ZWY-40/14LP | |
| Performance Item | Parameters | |
| Loading Capacity (m³/h) | ≥45 | |
| Total Machine Weight (kg) | 2700±5% | |
| Working Area (m) | ≥1.6×1.6 | |
| Ground Clearance (mm) | 140 | |
| Excavation Width (mm) | 2700 | |
| Excavation Distance (mm) | 1100 | |
| Excavation Height (mm) | 1400 | |
| Excavation Depth (mm) | 1200 | |
| Transport Height (mm) | 250 | |
| Transport Length (mm) | 1100 | |
| Maximum Material Passing Capacity (mm) | ≤200×500 | |
| Climbing Ability (°) | ≤16 | |
| Transport Speed (m/s) | 0.8±5% | |
| Total Engine Power (KW) | 14 | |
| Electric roller power (KW) | 3 | |
| Rated Working Pressure (Mpa) | 15 | |
| Safety Valve Opening Pressure (Mpa) | 16 | |
| Electrical Insulation Strength | Three-phase (MΩ) | >1.5 |
| Phase (MΩ) | >1.5 | |
| Dimensions | Length (mm) | 4600±50 |
| Width (mm) | 950±50 | |
| Height (mm) | 1800±50 | |
| Model | ZWY-40/14LP | |
